大刻度盘读数方便、迅速。用于测量板材厚度。 硬质合金测量面；棘轮测力。

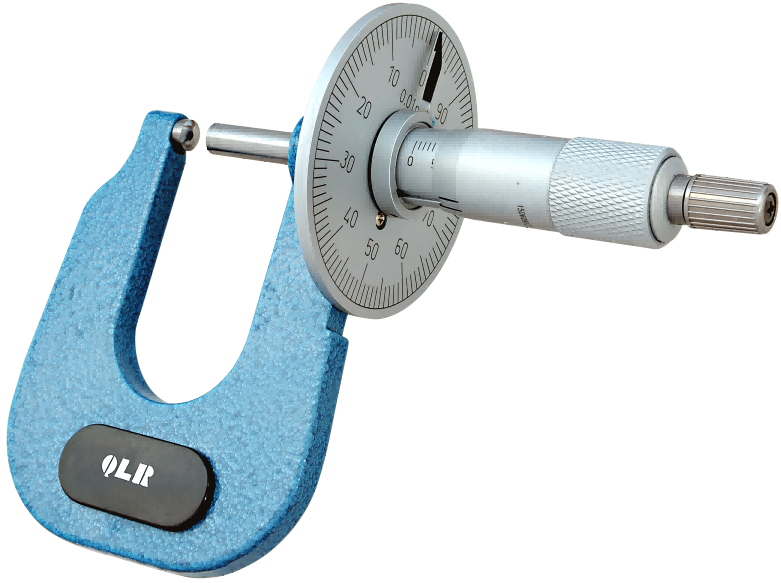

207-32-010板厚千分尺
测量参数
| 货号 | 测量范围 | 精度 | 弓深 |
|---|---|---|---|
| 平测量面 | |||
| 207-01-010 | 0-15mm | 0.004mm | 50mm |
| 207-02-010 | 0-25mm | 0.004mm | 50mm |
| 207-03-010 | 0-50mm | 0.005mm | 100mm |
| 球测量面 | |||
| 207-31-010 | 0-15mm | 0.004mm | 50mm |
| 207-32-010 | 0-25mm | 0.004mm | 50mm |
| 207-33-010 | 0-50mm | 0.005mm | 100mm |

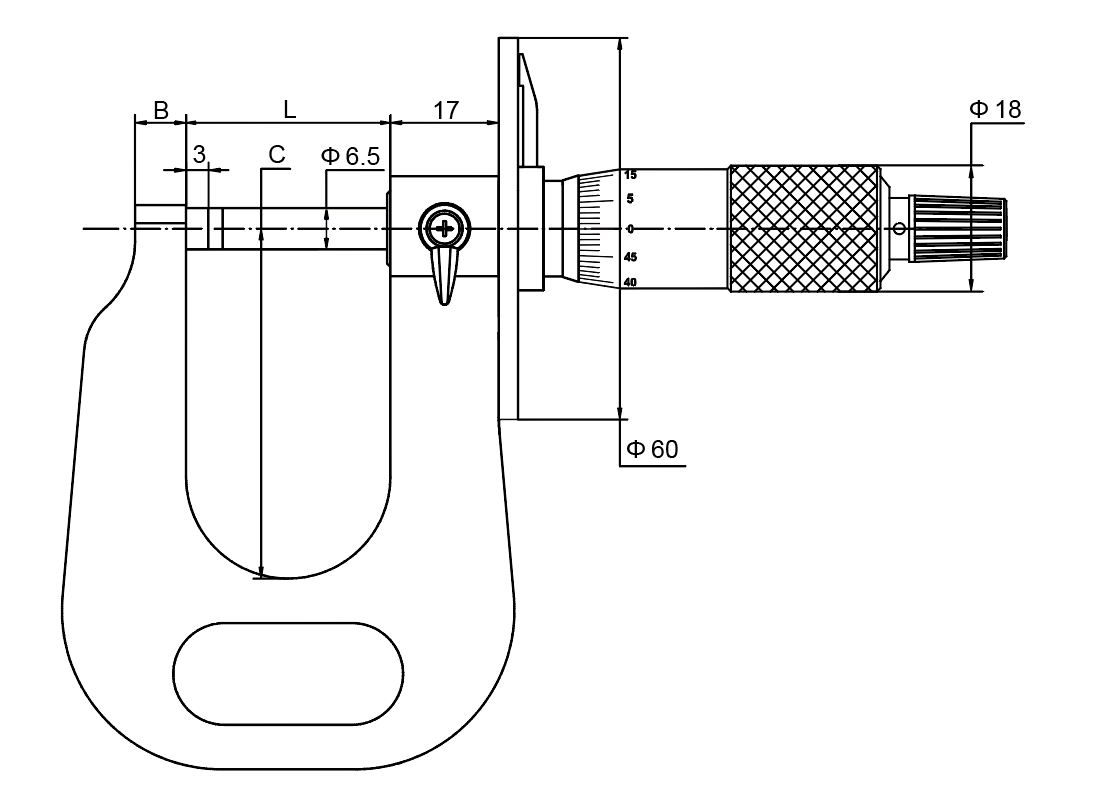

尺寸图
主要尺寸
| 测量范围 | L | B | C |
|---|---|---|---|
| 0-15mm | 22mm | 8mm | 50mm |
| 0-25mm | 32mm | 8mm | 50mm |
| 0-50mm | 57mm | 12mm | 100mm |

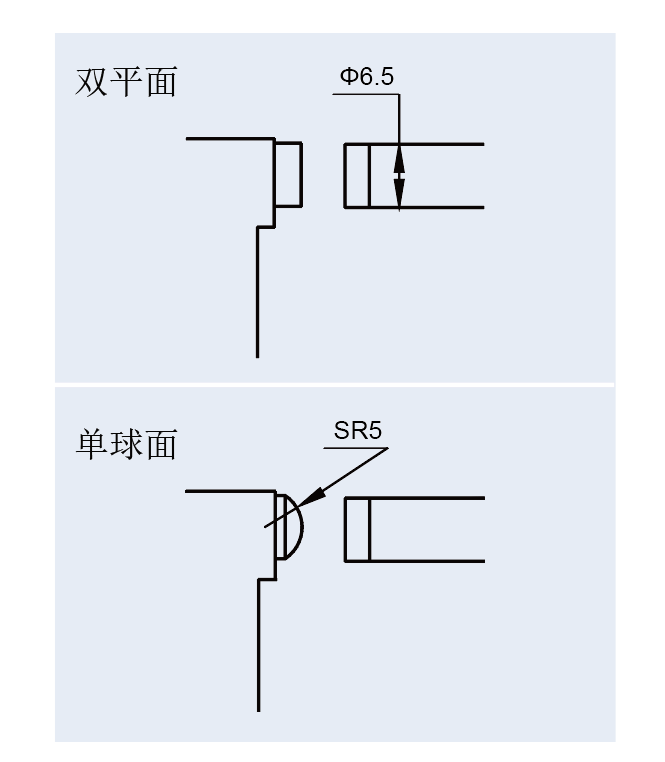

测头

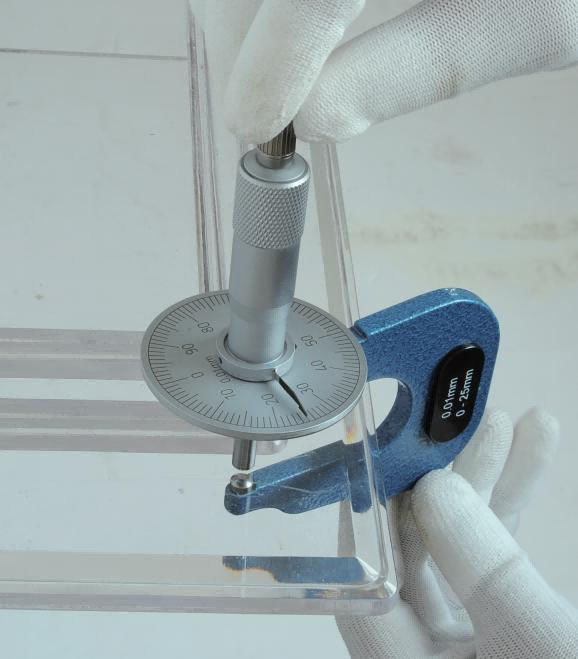

测量板厚度
